Swiftpoint X1 Control Panel Beta Changelog

Swiftpoint X1 Control Panel Beta Changelog

3.2.0.0 Beta

X1 Control Panel 3.2 brings Simple and Expert modes together in one window.

If you're coming from Simple Mode, everything should feel familiar, but more of Expert Mode's power is now within reach without all of its complexity. Check the article below for a tour of what's changed from a Simple Mode perspective.

If you're more familiar with Expert Mode, don't panic! The window looks like Simple Mode at first glance, but everything you're used to is still here, though some of it has moved, along with many new features, fixes and improvements.
Check the article below for a tour of what's changed from a Expert Mode perspective.

Simple & Expert Modes Merge:

  1. Simple and Expert modes now share one main window. Enable Expert View with the switch at the top left to access its extra navigation and configuration options.
  2. Expert View has three sections, Profile Settings, Overview and Mappings, replacing Expert Mode's Settings, All Mappings and tilt pages.
  3. A new Layout menu, next to the Expert View switch while editing (and in Settings > Interface), sets whether the mouse sits beside the editor and whether the output lists sit beside the mapping list: Auto, Always or Never.

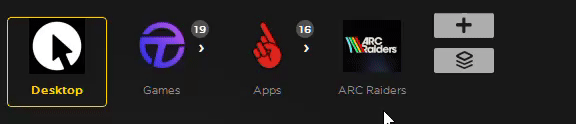

Profile bar:

  1. Filter the profile bar by profile or linked app name, with the filter button or Ctrl+F (Cmd+F). Press Enter to switch to the first matching profile.

  2. Ctrl+Tab and Ctrl+Shift+Tab step through your profiles.

  3. The Global profile is always shown (Simple Mode hid it by default) and has a globe icon. The "Show Global Profile" setting has been removed.
  4. The Active Profile dropdown now lists Global and sub-profiles too, as Expert Mode's did.
  5. New "Profile bar" setting: Icons and labels, Icons only, or Labels only.
  6. Sub-profiles are now clearly smaller than their parent, so the parent stands out.

Mappings View:

  1. Both views share one mapping list but display it differently:
    1. Mappings inherited from parent profiles are marked with a link icon. The Simple View lists them alongside the profile's own, as Simple Mode did. In the Expert View, with Show inherited on, they're also faded and have a dashed outline.
    2. Editing an inherited mapping overrides it on that profile, as it did in Simple Mode. In the Expert View an overridden mapping has a revert button to go back to the inherited one; in the Simple View, deleting it does the same.
  2. [Expert View] The Show inherited switch in the list's header shows or hides what a profile inherits. It's off by default.

  3. [Simple View] Clicking a mapping's output opens its output lists for editing, as in the Expert View, replacing the rename dialog.
  4. [Simple View] Analog tilts, pivots and deep clicks can now be added and edited. Tilt pages now list every tilt with an action, not just the first each way, and large nested trees fold away.
  5. [Expert View] The "Filter by input" switch shows only the selected input's mappings. Turn it off to always see all mappings.
  6. Nested mappings can be folded away. The Expert View's list also has Expand all / Collapse all.
  7. [Expert View] Back (and Esc) goes from Mappings and Profile Settings to the Overview, and Mappings reopens as you left it.
  8. [Expert View] Drag and drop to rearrange mappings. Hold Ctrl to drop a copy.

  9. [Expert View] Drag an action's name onto another mapping to swap their outputs (Ctrl+drag copies).
    1. To move just a press or release line's outputs, drag the grip that appears on the arrow to the left of them.
  10. The mapping menu is now in both views, with Copy, Paste, Save to action library, and a new Clear mapping option that empties a mapping completely (outputs, name and nested mappings) to start it from scratch. Clear mapping replaces Clear Outputs.

    1. Copy and Paste now use the system clipboard. A copied mapping is stored as plain text, so it can be pasted into another profile, kept in a note, or shared with someone.
  11. [Expert View] "+ Add mapping" and "+ Add setting" buttons, to override an inherited input or setting while Show inherited is off.

  12. Recording now records mouse buttons and the scroll wheel as well as keys. Click or scroll over the record pad to record them.

Profile Settings:

  1. Profiles can override settings one at a time; the rest stay inherited. Changing a setting overrides only that one, starting from its inherited value, and in Profile Settings it has a revert button. Expert Mode's "Add settings" page and Remove settings button are gone.
  2. [Simple View] Polling rate and lift-off height are now in the DPI panel. Before, only Expert Mode's Settings page had them.
  3. [Expert View] Output recorder is now available in the Profile Settings output actions.

Output lists:

  1. Press and Release output lists are now always shown, and each can be collapsed.
    1. Drop any output between the open press/release lists to rearrange them, or drop one on a collapsed list's header to add it at the end.
    2. Drag the Release outputs header to quickly change which ouputs happen on press vs release.
  2. An output's category can now be changed from its dropdown (e.g. a key press to a mouse click) without deleting the row.

Devices, What's New & X1 Settings:

  1. What's New and Settings open as pages in the main window instead of separate windows. Devices is a page too, replacing Simple Mode's mouse and receiver popups.
  2. Devices page: each connected mouse and receiver has its own card, with its connection, memory use, battery, force and tilt calibration, Test Connection and pairing.

New Control Panel Features:

  1. New joystick outputs:
    1. "Joystick Axis" puts a stick axis or the slider at a set position from any button: push the stick forward, set a throttle to 50% or centre an axis. The action library has each axis in 10% steps.
    2. "Joystick Hat" drives the joystick's hat switch: Up, Up Right and so on round to Up Left, pressed, released or tapped.
    3. Z Rotation, the joystick's fourth axis, which games often use for twist or rudder.
    4. Reverse turns a stick axis or the slider round, for a game with no invert option of its own.
    5. An analog deep click can now drive any stick axis, not just the slider.
    6. Joystick axes are named as Windows names them: X Axis, Y Axis, Z Axis and Z Rotation (were Left / Right, Forward / Back and Rotate).

  2. Mouse > Movement on a Mouse Movement mapping can now Follow Mouse, so the pointer keeps moving with the mouse while, say, a gesture's button is held, instead of standing still.

Improvements & Fixes:

  1. The action library now includes most mouse settings (such as DPI, polling rate and lift-off height) and the OLED screen modes. It only lists what your mouse and that input support. Its Joystick group has new outputs too: a stick axis or the slider at a set position, and the hat switch. Some example complex mappings such as Config Mode, DPI Shift, Rapid Fire, Toggle Hold and Scroll Gesture were also added.

    The small +N badge shows how many nested inputs an entry adds.

  2. Force calibration: once a button is calibrated, it opens on the Tune step with the saved curve, so it can be adjusted without pressing through the whole calibration again. The 0% and 100% points can now go further either way.
  3. Polling Rate output action, to change the polling rate from any mapping.
    1. [Z3] The rate holds only until the mouse's USB or SwiftLink connection changes. A fix is coming in the next firmware update.

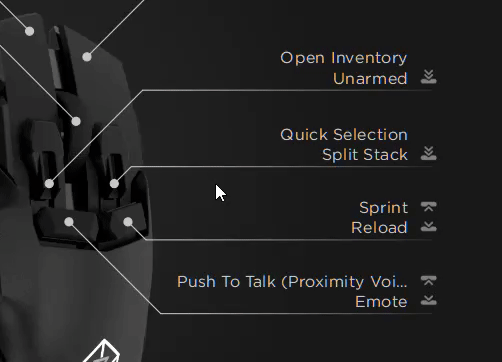

  4. The callouts around the mouse, in the Simple View and on the Overview, now show what's nested under each input, not just its deep clicks: the one mapping nested in it, or "+ N more" when there are several, each beside its input's icon. A trigger's push now sits above its pull.
  5. The Save button now says Saved when there's nothing to save, shows the save progress in place of the progress popup, and warns when the profiles are too big for the mouse's memory. Ctrl+S (Cmd+S) saves.
  6. Battery and memory now show as icons in the sidebar in both views. Their percentages are off by default: click either icon, or use Settings > Interface, to show them.
  7. A profile's image can be taken from an app: Add Image accepts an .exe (Windows) or .app (macOS), and linking an app uses its icon when the profile has no image.
  8. [Simple View] The mouse picture now shows the profile's logo colour, including Rotation Color, as Expert Mode's did.
  9. The vibration button now only shows by default on inputs without a click of their own (tilts, deep clicks, movement) and on mappings that already vibrate. "Show vibration widget" in Settings > Interface changes that.
  10. [macOS] Share modifier keys between devices (experimental): a modifier held on the mouse applies to keys on the keyboard, and vice versa. Needs Accessibility permission.
  11. Theme setting: Theme can now be set manually instead of following the active mouse.
    1. New Classic theme, based on Expert Mode's look before version 3.1.
  12. New dialog style across the app, with clearer titles and button labels, and red buttons for destructive actions.
  1. Significant reduction in memory usage after viewing all mappings across many different profiles.
  2. Deleting or reverting a mapping now asks first, naming the input. Empty mappings are removed without asking.
  3. Block parent mappings is renamed Skip parent release: it skips the release outputs of the mappings a nested mapping sits in, and never blocked their press.
  4. Picking Do Nothing from the action library now also turns off Skip parent release, and no longer names the mapping "Do Nothing".
  5. Esc now steps back anywhere in the main window, like the mouse's back button.
  6. Minimum window size reduced to 990×600 for smaller screens. The window opens fitted to the screen, and remembers its position and size.
  7. The profile bar scrolls by whole cards, and supports horizontal wheels and touchpads. Sub-profile groups opened to show the active profile close again when it changes.
  8. Tray menu: a long list of profiles now scrolls on its own, so Open, Auto Profile Switching and Quit stay in place.
  9. Switching between manual and automatic profile switching no longer lights up Save.
  10. Simple Mode's hints bar and its "Display Hints" setting have been removed. Tooltips now cover what the hints said, and more icon-only buttons have tooltips.
  11. Check for Updates now says when X1 is up to date.
  12. Add Input on a tilt now starts on a further tilt in the same direction, instead of Left Button. A deep click added inside a deep click now starts past it, instead of at 50% where it often couldn't trigger.
  13. Picking an action library entry with nested mappings for a mapping that already has some now asks whether to merge or replace them.
  14. Importing profiles with names you already have now asks whether to replace yours or import numbered copies. Imported sub-profiles stay under their own parent, and merging an import with Global keeps your default profile.
  15. Separate X & Y DPI can now be set in the Simple View, and with a single DPI level. Fixed editing DPI in Simple Mode discarding separate Y values, and the DPI readout showing the wrong value when X and Y are separate.
  16. Fixed unsaved edits being sent to the mouse but not saved to file after the PC wakes, or when BTLE Override is applied.
  17. Fixed inherited nested mappings not working in some profiles (e.g. Global's Right Trigger Pull + Scroll).
  18. Fixed vibration strengths reopening one off what was set (e.g. 15% as 16%, or 100% as 99%), and 1% turning the vibration off.
  19. Fixed the joystick slider going wrong past the end of its range: a slider capped at 80% jumped to 100%, and a range ending below 50% sat at 50% before sweeping up again.
  20. Fixed Esc on the import "merge or clear?" question clearing profiles instead of cancelling.
  21. [French] Fixed Tilt Forward and Tilt Back being named the wrong way round.
  22. Fixed a SwiftLink receiver's data rate option not showing for old pairings.
  23. [Windows] Windows Smart App Control no longer blocks it.
  24. [macOS] X1 now shows in the Dock and Cmd-Tab while its window is open.
  25. [macOS] Fixed menu-bar menu items only reopening the window.
  26. [macOS] Fixed X1 not opening its window when launched again after a hidden start at login.


Previous Releases

3.1.3.74 Beta / 3.1.4.0 Public

New Control Panel Features:

  • Updated force calibration process.
    • Calibration can now be previewed and tuned before saving it to the mouse.
    • Keyboard outputs are now disabled during calibration to prevent actions which could interrupt the calibration (Esc, Alt-Tab etc.)

Improvements & Fixes:

  1. "Connection" outputs are now also available from the action library in simple mode.
  2. Fewer spurious "Save Failed" dialogs.
  3. Connection Test updates:
    1. A connection is now rated solely based on measured performance (retransmits and failed packets). Connection strength and blacklisting are still measured, but only change the rating when they effect latency/performance during the test.
    2. New Extended Connection Test which records connection stats until the user stops the test.
      1. Intermittent connection issues are captured in the Test Report, and complete test data is saved to a csv.
  4. Crash reports can now be read from the mouse/receiver via USB and sent to support for troubleshooting.
  5. Logs have moved to the system state folder, and downloads to the cache folder. Existing logs are moved automatically.
  6. Auto Updates can be turned off by package managers, either with SWIFTPOINT_X1_DISABLE_UPDATES=1 or with DisableUpdates=true in a system policy.ini. When off, all update options are hidden

Z3 Firmware Update 107:

  1. Bluetooth fixes
    1. More reliable pairing and faster re-connections.
    2. Fixed a mouse crash that could occur when a Bluetooth link dropped mid-send.
    3. The mouse no longer appears as "Unknown device" in nearby computers' Bluetooth lists while reconnecting.
    4. On a dual-boot machine, each OS can now keep its own pairing.
  2. Tilt calibration fixes
    1. Tilt calibration now automatically zeroes the tilt angles when the calibration completes.
    2. Tilt calibration fails less often when the mouse moves slightly during the process, and automatically retries once if it does.
  3. More accurate battery level:
    1. Each mouse now calibrates its battery reading at the end of a full charge.
    2. Fixed battery readings that could stop updating until the mouse restarted.
  4. Crash dumps can be read and cleared over USB, on both the mouse and the receiver.
  5. Reduced performance impact of streaming force data during force calibration.

3.1.3.39 Beta

New Control Panel Features:

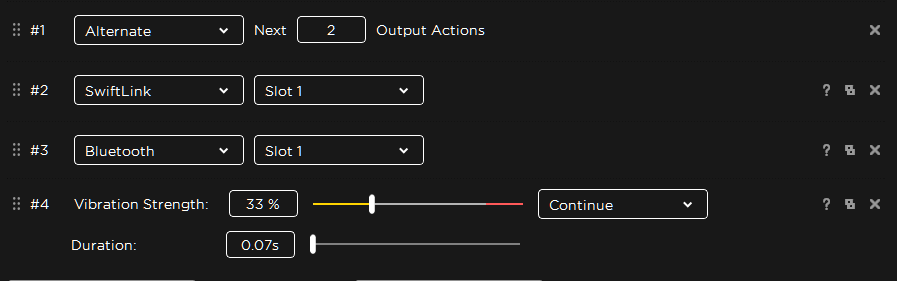

  1. New "Connection" outputs which allow Z3 to switch between SwiftLink, Bluetooth, and USB connections in custom mappings.
    1. Connection status is displayed on the OLED after triggering a connection change.
    2. Outputs placed after a connection output wont trigger until the connection is successful, and will be cancelled if it fails.

Improvements & Fixes:

  1. SwiftLink now defaults to a more robust 1Mbps data rate.
    1. 1Mbps is recommended if you are seeing any connection instability, but 2Mbps has more latency headroom under good connection conditions.

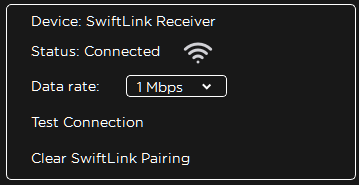

    2.  Data rate can be set from the receivers settings.

  2. [Windows] Fix for some non-Qwerty keyboard layouts on Windows causing incorrect keyboard outputs from the Z.
    1. The Keyboard layout used for the Zs keyboard outputs defaults to the Windows setting on launch, but can be overridden from the X1's settings.
  3. [Windows] App detection fixes and improvements.
    1. Resolved issue preventing "Helldivers 2" and other games using similar anti-cheat from being detected.
    2. New "Background app polling" option.

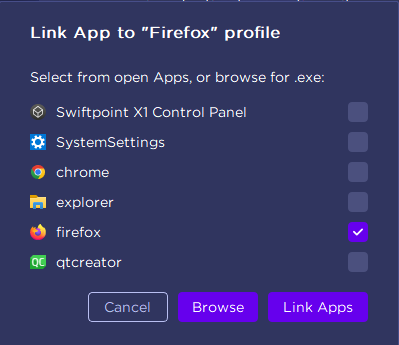

    3. Ignored Apps and Link App dialogs now offer recently detected apps, and changes apply without an app restart.
  4. Fixed intermittent save failed message when save actually succeeded.
  5. Fixed issue where DPI's over 12K could be capped to 12K on app launch.
  6. [macOS] Fix for "Quit from the tray" and Cmd+Q  not always working on first attempt.

Z3 Firmware Update 102:

  1. Added support for "Connection" outputs.
  2. Added 1Mbps data rate.
  3. Fix for some joystick outputs not being set to their neutral position at mouse/receiver connection.
  4. Fix polling rates below 1000Hz not working over USB.
  5. Mouse no longer enumerates over USB when it is switched off (it will still charge).
  6. Resolved issue where SwiftLink could fail to re-connect after switching mouse off and on.
  7. Resolved issue with reported battery level reverting to a previous state when switching to a wireless connection.

3.1.3.1 Public

New Control Panel Features:

  1. New "Image" OLED mode with a built-in image editor for Z1, Z2, and Z3.
    1. Left click to draw white pixels, right click for black.
    2. Copy/paste images between mappings or other apps, and save/load them as files.

  2. Profile Action Library and Logo Inheritance.
    1. Profile Action libraries and Logos can now be inherited by sub-profiles, and are included in profile import/exports/duplicates.

Improvements & Fixes:

  1. Profile Import/Export now available via the Manage Profiles dialog in both Simple and Expert Mode.

  2. Fixed stalling Z1/Z2 firmware updates on Apple silicon.
  3. Improved diagnostics and retry handling for firmware updates.
  4. Fixed a "Save Failed" popup appearing after waking the PC while a SwiftLink mouse was still asleep.
  5. Fixed issue with detecting admin level apps on Windows.
    1. The "Detect admin level apps" setting should no longer be necessary in most cases, and it should never be necessary to run the X1 itself as admin.
  6. When overriding profile settings (e.g. DPI, RGB, OLED), parent settings are now copied to the profile first, so changing one setting doesn't reset others to default.
  7. Fixed renaming actions in simple mode sometimes modifying parent mappings.
  8. Fixed layout issues in the settings dialog on macOS.
  9. [Linux] Added Niri Wayland compositor support to auto profile switching.
  10. Added Bluetooth Connection Test for Z3 mice.

Z3 Firmware Update:

  1. Fixed poor SwiftLink performance immediately after system startup.
  2. Tuned SwiftLink channel blacklisting for more robust connections in congested wireless environments.
  3. Added Bluetooth link diagnostics.

Z1, Z2, Tracer, Creator Firmware Update:

  1. OLED "Image" display mode support.
  2. Added Windows haptic signals support.
    1. Requires Windows 11, version 24H2 (26100.8328 or above)
    2. Enabled/Disabled via Windows Mouse Settings.

3.1.2.0 Public

Improvements & Fixes:

  1. Added Escape from Tarkov and The Finals game profiles.
  2. Allow scrolling output actions list during output action drag.
  3. Maintain "Go To Profile" target when profiles are re-ordered via simple mode.
  4. Fix for Global mappings duplication when importing a global profile.
  5. Fix for some UI elements preventing scrolling on cursor hover.
  6. Fixed high CPU usage in expert mode.
  7. Fixed Simple Mode's profile rename dialog not allowing suggested unique name.
  8. Updated all translations.
  9. Stability improvements to Z1/Z2 firmware update process.
  10. Updated intro dialog.

Z3 Firmware Update:

  1. Added Windows haptic signals support.
    1. Requires Windows 11, version 24H2 (26100.8328 or above)
    2. Enabled via Windows Mouse Settings.

Z3 Control Panel Features:

  1. SwiftLink Receiver Options.
    1. Check Connection Status.

    2. Clear/Create SwiftLink Pairings.
    3. Connection Test.
      1. Perform a quick connection test to help diagnose connection issues.
  2. Battery Options
    1. Battery Level display in Simple & Expert modes.

    2. Battery Level OLED Mode.
    3. Low battery notifications.
      1. Enable/Disable or set a custom threshold in options menu.



3.1.0.76 Beta

New Control Panel Features:

  1. Allow re-arranging profiles in Simple mode via drag and drop.
  2. Allows re-arranging and saving of mappings from simple modes show all view.
    1. Note that some mappings can't be moved (RGB, OLED, DPI).
    2. Warnings are displayed when swapping mappings between incompatible inputs, or when a swap isn't fully reversible. For example moving a mapping with a deep click to a button which doesn't support deep click. Or moving a mapping with nested inputs, or non-typical press/release output placement onto the scroll-wheel.
  3. Added ARC Raiders game profile.
  4. [Linux] Allow recording of system keyboard shortcuts - (Requires new udev rules).

Improvements & Fixes:

  1. Add sub-profiles count badge to profiles in simple mode.
  2. Allow cancelling of mapping paste, and fixed overwrite button size.
  3. Fix for UI scale factor sometimes reverting to 0.5 on launch.
  4. X1 will now offer to restart itself if a setting which requires restart is changed (e.g. scale factor).
  5. Allowed naming of "empty" mappings in expert mode.
  6. Enforce globally-unique profile names to avoid inconsistent behavior when duplicate profile names exist.
  7. Improve profile name/position syncing between Expert and Simple modes.
  8. Allow exporting a sub-profile without its parent. It is imported as a parent profile.
  9. More reliable recording of press-only and release-only outputs.
  10. Fixes for Media key recording.
  11. Force Calibration UI now only shows "post-click" force readings for better consistency.
  12. Fixed incorrect duplicate detection/deletion of "Repeat From" output when its type is re-selected.
  13. Corrected maximum "Repeat From" outputs "times" value.
  14. Added duplicate prevention to Alternate output.
  15. Fixed issue where "Clear Outputs" wouldn't clear the release outputs.
  16. Sync mapping text when "Block parent mappings" flag is changed.
  17. Corrected several invalid action library entries.
  18. Fixed some dialogs preventing the main window from being focused when partially obscured.
  19. Hid all "Save to Flash" options while automatic Save to Flash is enabled.
  20. [Linux] Fixes for App Detection on KDE and SteamOS.
  21. [Linux] Updated SSL libraries for software updates on Linux
  22. [Linux] Removed spaces from udev rules tags so they're not flagged as errors

3.1.0.0 Beta

New Control Panel Features:

  1. Added Support for Z3.
  2. "Block further outputs" updated to "Block parent mappings".
    1. The block now only applies to ancestor mappings, not sibling mappings.
    2. Blocks are now available on nested scroll and mouse movement inputs.
    3. Blocks can also be added to a nested button/tilt activation, instead of just deactivation.
  3. Added X1 API V2 - Documentation here.

Improvements & Fixes:

  1. Improved handling of UI scaling, and custom scale factor can now be set via options menu.
  2. X1 can now detect multiple supported mice at once.
    1. By default newly detected mice will be set as the active device automatically, but this can be disabled from the settings page.

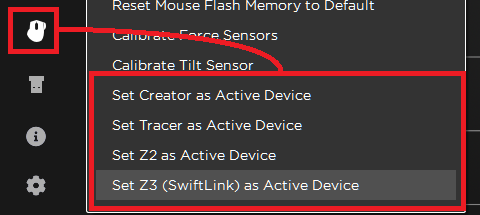

    2. Active device can be selected from the Mouse icon in Simple Mode, or the new "Manage Devices" page in Expert Mode.

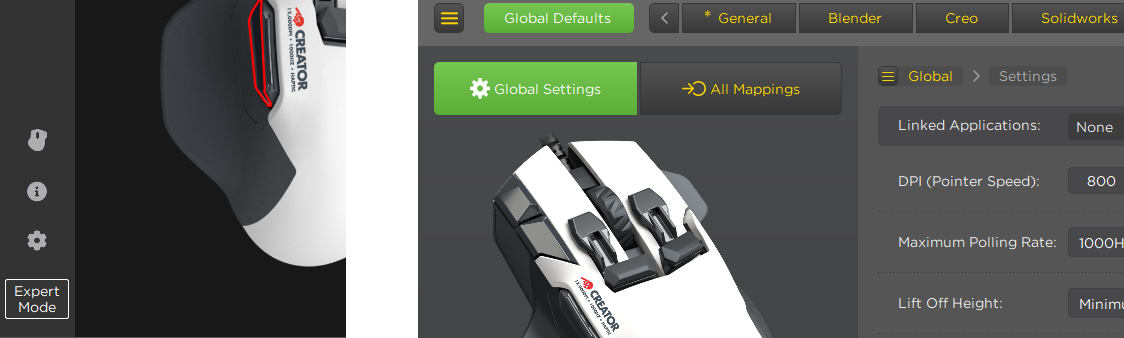

  3. Expert Mode theme updated to match Z's simple mode theme.
  4. Profiles are now only re-saved to the mouse if they have been changed.
  5. When new profiles are saved to the mouse, they are also saved to Flash automatically.
    1. If you still want to manage when profiles are saved to flash manually, this change can be reverted by disabling "Always save profiles to mouse flash" in the options menu.
  6. When Expert Modes "Show Output List in Second Column" is enabled, the currently open output list is now remembered and restored when switching view between profiles.
  7. Resolved issue which caused the "active" profile to be treated as the default profile when settings were saved to the mouse.
  8. Deleting a parent profile now correctly deletes sub-profiles preventing crashes and invalid indexes.
  9. Various UI tweaks and improvements.
  10. Windows: X1 updates are now installed silently when accepted (no install wizard after UAC prompt). Effects of this change will only be seen in the next update.
  11. Windows: Added filtering for Alt+Tab / Task View windows, which could prevent app changes from being detected.
  12. macOS: App is now a universal binary, so works natively on Apple Silicon and Intel based Macs.
  13. Linux: App detection improved for various session types and compositors.
  14. Linux: Now using hidapi-hidraw for mouse detection and comms.
    1. These changes require new udev rules for the X1 to detect your mouse. So make sure to apply the updated udev rules. See Setup section of the Linux release post for details.

3.0.9.1 Public

Firmware Update:

  1. Fix for "Block Further Outputs" potentially blocking inactive outputs, causing their next activation to be skipped.
  2. Misc improvements to align with upcoming Z3 release.

3.0.8.14 Beta
  1. Allow access to all pre-made profiles from all mouse models.
  2. Allow adding vibration to all input types in simple mode.
  3. Use ↑ and ↓ symbols for mouse press and release outputs on mappings screen.
  4. Fixed potential crash on profile import.

Firmware Fixes:

  1. Fix for gyro freezing after system sleep wake cycle.

3.0.8.9 Beta
  1. Improvements to firmware update process to automatically handle some known fail-states.
  2. Improvements to Force Calibration process to better handle latent force reading.
  3. Fixed issue where Action Names displayed in Expert Mode were not always updated when switching mappings.
  4. Fixed case where Ignored Apps list may itself be ignored.
  5. Fixed crash which could occur when changing profile via a mouse mapping.
3.0.8.0 - Public


  1. Adjusted Action Library UI in Expert Mode so that it doesn't obscure how to access the output list.
    1. To open the action library click the icon next to the keyboard recorder.

    2. The output list can still be opened by clicking on an action name. But an edit button () will also appear as you hover over each action to highlight this.

  2. Improvements to firmware update process to automatically handle some known fail-states.

Firmware Update:

  1. Fixed issue with Z2 tilt filtering. Tilt inputs below 3° should now be ignored when the mouse is lifted off your desk as intended.

3.0.7.8 - Beta

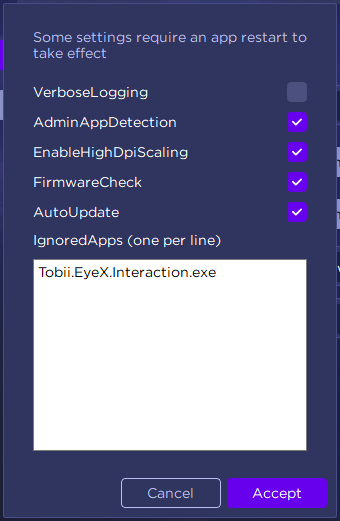

  1. Enabled "Ignored Apps" list for app detection on macOS.
  2. Corrected the keycode for zero and numpad zero keys in the Action Library.
  3. Corrected issue where mappings pasted onto left click would remain linked to its source.
  4. App detection backend is now fully disabled while auto profile switching is disabled.

3.0.7.2 - Beta
  1. Added optional API to allow third-party apps/scripts to set the active profile. Details here.

3.0.7.0 - Public
[Windows] Allow installer to run on ARM64 systems for use via Prism.

3.0.6.2 - Beta
  1. [Windows] App should now launch on boot in the background for non-admin users.
    1. This can be disabled via the "Startup apps" tab of Task Manager if you prefer to launch manually when needed.

Firmware Update:

  1. Adjusted scroll decoding to address "half-scroll" issue. Where a single scroll notch can be missed when changing scroll direction.

3.0.6.0 - Public

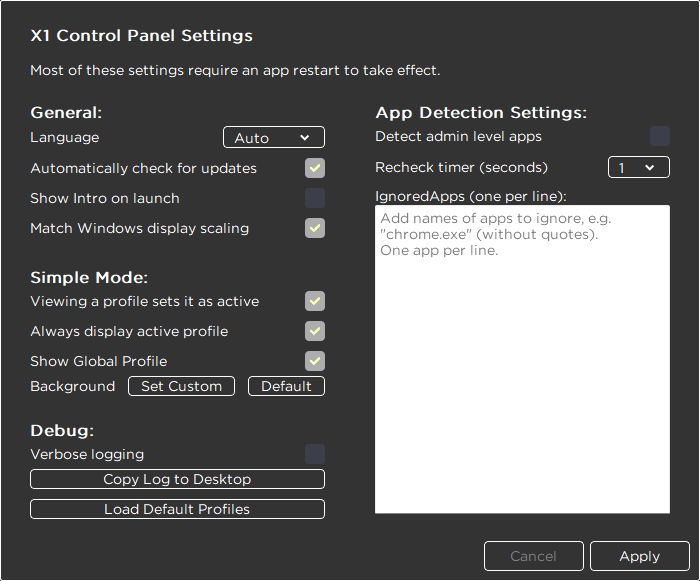

  1. Added "Release Channel" option to settings menu. You can now switch between the Beta and Stable releases without a secret code.
  2. [macOS] Resolved issue which prevented app links created in Simple Mode from functioning.
  3. Reverted previous change to mouse detection system which was resulting in unreliable mouse detection.
  4. Use "Joystick" instead of "Controller" consistently when referring to DirectInput actions.
  5. Allow loading of .jpeg custom background images (not just .jpg).
  6. Resolved issue which could result in deleting the incorrect profile when trying to delete a profile with sub-profiles.
  7. Resolved issue which temporarily prevented saving profiles to mouse flash after performing a clear and reset.
3.0.5.8 - Beta
  1. Added French Translation courtesy of Foul.
  2. Resolved issue where editing an action created via the action library could also effect other instances of that action.
  3. [Linux] Added correct translation files for Linux version.
  4. [Linux] Added partial app update support.
    1. New versions will be detected, and downloaded like on Windows/macOS. However there is still no installer, so accepting the update will just close the X1 Control Panel and open the downloaded archive.

3.0.5.5 - Beta
  1. Resolved crash that could occur when switching view between profiles in Expert Mode.
  2. "Clear Outputs", and overwriting a mapping with "Paste" in Expert mode now correctly updates the release outputs.
  3. Allowed saving of settings in Expert Mode even when no mouse is connected.
  4. Resolved issue with F21-24 keys not being saved correctly.

Firmware Update:

  1. Addressed issue where gyro tilt values could intermittently spike to high values.
  2. Addressed issue where scroll speed could be drastically increased when swapping from Windows to another OS via KVM switch.

3.0.5.0 - Public

Expert Mode:

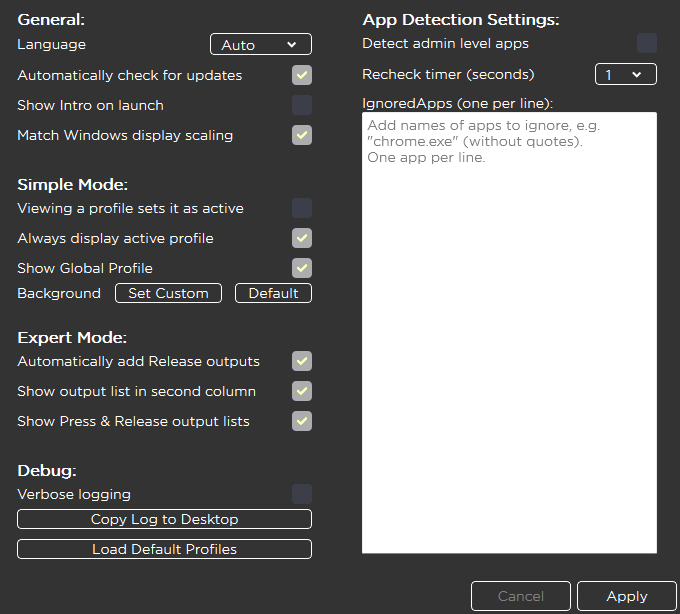

  1. Added option to display output action list side by side with their mapping.

    1. This setting is off by default, as it doesn't work well for 1080p displays. 2560+ horizontal resolution recommended.
  2. Added option to display an inputs Press and Release output lists simultaneously. This also allows outputs to be dragged between the press/release inputs.

  3. Both of these options can be enabled at the same time if you want to see everything at once.

  4. Added Control Panel options menu to Expert Modes main menu (previously only accessible via Simple Mode).


  5. Mouse and Joystick Press outputs now have Release outputs added automatically in Expert Mode (previously this only worked for keyboard outputs).
    1. This automatic adding of release outputs can be disabled from the options menu if you prefer.
  6. [Windows] Show list of open apps when app linking via expert mode (previously only available in Simple Mode).

Fixes/Improvements:

  1. Limit subprofiles list, and import/export dialog to window size. So they can't extend off the screen.
  2. Expanded autobackup system to keep up to five backups instead of just one. A new backup create added on app launch only if changes have been made to your profiles since the last backup.
  3. Resolved issue where using the system tray context menu would also open the application window.
  4. Capped number of output actions on a single input to 255 to match firmware limit.

Experimental Linux version:

  1. A List of recent apps is now displayed when linking apps to a profile.
  2. Resolved issue that was preventing the Control Panel from fully exiting when closed from the system tray.

3.0.4.18 - Beta

New Control Panel Features:

  1. Experimental Linux Version (more details here)

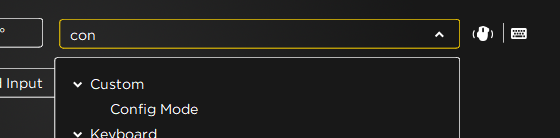

  2. Added Action Library and Keyboard Recorder to press outputs on Expert Modes mappings screen.

    1. These function in mostly the same way as their Simple Mode equivalents. The only difference is that clicking directly on the press outputs name will take you to the output list (as it always has in Expert Mode).
    2. Note that you can save your own custom actions into the Action Library using the "Save" function on any input.

3.0.4.2 - Beta

New Control Panel Features:

  1. Swiftpoint Z2 Support
  2. Firmware update for Z, Tracer and Creator, including:
    1. Major firmware optimizations to significantly improve polling rate.
    2. Updated SROM for PWM3360 sensor. Further improves tracking performance.

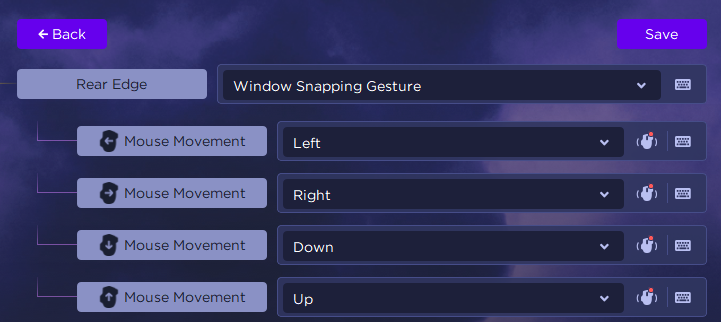

  3. Added Mouse Movement output to expert Mode for use in macros.

  4. The Force sensors used for Deep Click can now be re-calibrated via "Mouse" menu in simple mode, or main menu in expert mode.

  5. Any mapping in expert mode can now be saved into a custom action library.

    1. Actions saved to the custom action library are available on all profiles in Simple mode. (We're working on making them available in Expert Mode too).

  6. [Windows] Auto Profile Switching stability improvements
    1. Handles cases where misbehaving background apps could cause the profile to change unexpectedly.
    2. By default this will now re-check each profile switch four times a second for 1 second after the switch occurs. If you continue to have problems let us know; and try increasing the re-check timer in the Cog settings menu.
  7. If you link an app to a profile which does not yet have a name or icon. The name and icon from the linked app will be applied to your profile.

  8. Expanded features available in Simple mode, including:
    1. Updated UI color scheme for the Z.
    2. View and configure OLED and Tilt settings (only 1 base tilt input for each direction, and no analog tilt inputs).


    3. Blank mouse will be displayed if no mouse is connected (in expert mode too).

    4. Input combinations can now be created in simple mode.
      1. Just click the new "Add Input" button below any base input (except scroll).

      2. Select the input type and specific input you want to add.

      3. Adjust the input specific settings to suit the mapping you want to create.

      4. Collapse the input settings menu with the arrow on its right edge,

      5. Add any input to your new input combination as you would normally.

    5. Sub-profiles can new be added, viewed, and edited in Simple Mode.

      1. Click the small arrow icon which appears next to a Parent profile to expand or collapse its sub-profiles.

    6. Global Profile is also optionally visible and editable in Simple Mode.
      1. Enable this by clicking the Cog icon on the side bar, and ticking the "Show Global" checkbox.
    7. Clicking on an output in simple mode will now show a list of its individual output actions; as well as allowing you to rename it.

Improvements:

  1. In Simple mode, "Viewed" and "Active" profile are now synced.
    1. Viewing a profile in Simple mode now also sets it as active on your mouse.
    2. When the active profile is changed by the mouse, or auto profile switching simple mode will also switch view to that profile.
    3. Both of these changes can be disabled if you prefer to keep the distinction between "Viewed" profile and "Active" profile.
    4. When this sync is disabled, profiles can be manually set as active by right clicking them and selecting "Set as Active".
  2. Added right click menu to profiles in expert mode (options still also available from the profile hamburger menu).
  3. Re-arranged some options on the side bar for more consistency.
    1. Includes functions which apply directly to your mouse:
      1. Current memory usage.
      2. Save profiles to mouses flash memory.
      3. Reset mouse flash memory.
      4. Calibrate Force Sensors.
      5. Calibrate Tilt Sensors.
    2. Includes Control Panel version and help info:
      1. Current version number.
      2. Link to change log.
      3. Link to user-guides.
      4. Toggle hints display.
      5. Check for new version.
    3. Now opens a settings menu with several new options. Hover your cursor over a setting to see a brief description of its effect.

  4. Custom background image can now be applied to simple mode via the Settings menu above.
  5. Action library filters can now include the "space" character, making it easier to search for action with multi-word names.
  6. Display up to two levels of nesting for all output types in simple mode.
  7. Color scheme for previously connected mouse will be displayed on launch even without a mouse connected, instead of defaulting to Tracer color scheme.

Fixes:

  1. Resolved issue where auto profile switch could get stuck in a loop, swapping back and forth between two profiles.
  2. Deleting an input in simple mode will now also delete any inputs nested inside it.
  3. When the action library is opened the current action will be selected, even if it's in a sub-category.
  4. Action library will now open above the output bar if there is not enough room for it to fit below it.
  5. Prevent action sub-categories in libraries from being combined if they are not in the same group.
  6. Enabled save button when a profile is linked to app in expert mode.
  7. Prevent software update notifications from interrupting mouse coms.
  8. Addressed issue where incorrect translation could be applied to the UI based on OS region format setting, instead of language setting.
  9. Correct expert mode page titles for triggers and scroll-wheel
  10. [Windows] Load settings to the mouse after system wakes from sleep.
  11. Firmware Fixes:
    1. Fix for some computers not booting with mouse connected.
    2. Resolved issue where haptic motor could get stuck in an on state when mouse is starting up.



2.0.11.0 - Public

New pre-made Profiles and Action Libraries for:

  1. Hell Let Loose
  2. Path of Exile

Improvements & Fixes:

  1. Resolved issue where "Global Settings" (e.g. DPI, Polling Rate) were not loaded when manually importing a Global Profile.
  2. Resolved issue where incorrect profiles could be loaded during a manual profile import.
  3. Current active profile will now be maintained after importing profiles (if it is not removed).
  4. Stopped Control Panel from automatically overwriting profiles saved to mouse flash memory when it connects.
  5. Expanded Traditional Chinese translation to include everything except pre-made profiles and action libraries.
  6. Corrected issue where available translations were not being applied on macOS.

2.0.10.0 - Public
On Windows a list of currently open apps is now displayed when you are linking a Profile to an app. This saves you from having to locate the .exe file, and avoids difficulties with linking Windows store/Game Pass apps.

Added a link to our user survey in the intro prompt.

2.0.9.0 - Public

New pre-made Profiles and Action Libraries for:

  1. Adobe Premiere Pro
  2. Blender
  3. Creo Parametric
  4. DaVinci Resolve
  5. Logic Pro
  6. SolidWorks

Creator now supports Expert Mode:

Use the button at the bottom left corner of the Control Panel to access "Expert Mode" where you can tweak the finer details of your profiles.

Improvements & Fixes:

  1. Minor corrections to Canva Profile, and Photoshop action libraries.
  2. Resolved issue with "Next/Previous Profile" actions not working correctly when selected from action library.
  3. Improvements to app install detection.

2.0.8.0 - Public

New pre-made Profiles and Action Libraries for:

  1. Adobe Illustrator
  2. Adobe InDesign
  3. Adobe PhotoShop
  4. Adobe XD
  5. Affinity Designer
  6. Affinity Photo
  7. Affinity Publisher
  8. Canva
  9. CorelDraw
  10. GIMP
  11. Inkscape

2.0.7.26 - Beta
  1. Mouse movement inputs settings can now be edited in simple mode.

  1. Resolved issue where mappings pasted in expert mode wouldn't be saved, or would cut child mappings from source when "Merge" option was selected.
  2. Resolved issue where admin level applications with long names were not correctly identified.
  3. Expanded action library syntax to fully support Wait, Alternate, Repeat, Stop, DPI, and Vibration outputs, along with repeating mouse movement inputs.
  4. Select ini settings can now be edited in the Control Panel via a menu that can be opened by middle clicking the icon in simple mode, or main menu in expert mode .
2.0.7.20 - Beta

Simple Mode:

  1. OS shortcuts that were previously only in the Desktop Profile's action library are now available to all profiles.
  2. Resolved issue where changes to Default Profile, Auto Switching and Linked Applications in simple mode were not permanently saved unless other changes were also made.
  3. Added scroll-bar to action library list when filter is applied, so all results can be viewed.
  4. Resolved issue where action library search filter did not reach double nested actions.
  5. Resolved issue where Function key outputs were not created correctly when selected from action libraries.

Expert Mode:

  1. Added option to record wait time between key presses when using the keyboard recorder to create macros in expert mode.

  2. Added "Duplicate" button to output list in Expert mode. This will create a copy of the output immediately below the original.

  3. Resolved issue where profiles duplicated in Expert mode would remain partially linked. Causing some changes in either profile to effect the other.
  4. Resolved issue where "Repeat From" outputs "Times" value would reset to zero whenever the output list containing it was viewed.

General:

  1. Offer to import profiles from 'Swiftpoint Driver' on first launch if no other config is already loaded.
  2. Additional check for corrupted profiles before they are loaded (latest backup will be loaded if problem is detected).
  3. Control Panels logging system can now capture mouse reset cause, to help identify hardware issues.
  4. Added UI to manage select ini settings (Opened by middle clicking on the icon in simple mode).
    1. VerboseLogging: Adds additional information to the Control Panels log file to assist with troubleshooting. Leave this off unless diagnosing an issue with Swiftpoint Support.
    2. AdminAppDetection: Allows Control Panel to detect apps running as admin even it's not running as admin itself. Leave this enabled unless you are seeing a "TaskList" error on system shutdown and want to get rid of it.
    3. EnableHighDpiScaling: Sets whether or not Control Panel scales based on Windows display scaling setting. Disable if the Control Panels UI is too large for your display.
    4. FirmwareCheck: Disabling this allows the Control Panel to connect to a mouse with any firmware version. This will not work correctly if attempted with very old firmware. So only disable this for testing purposes (e.g. the beta firmware mentioned further below).
    5. AutoUpdate: Enable or disable the update checks that occur on the Control Panels launch, and once every 24 hours.
  5. Allow UI language to be locked via "Language" ini value, if you do not want it to automatically match system language. These are currently only partial translations of Expert mode, but the options are:
    1. en = English
    2. es = Spanish
    3. zh = Chinese
    4. ru = Russian
  6. Added "IgnoredApps" ini setting which prevents listed apps from triggering app switches.
    1. If an app is opening briefly and causing your profile to change to default, but not switch back to the profile you were using previously when it closes. Adding it to the "IgnoredApps" list will prevent it from being detected by the profile switching system at all. So you will remain on your current profile even when the app steals focus.

Optional beta firmware:

  1. New scroll decoding which addresses an issue where the first notch can be missed when changing scroll direction. If you are having this issue frequently check here or details on how to get the Beta firmware.

2.0.7.0 - Public
  1. Resolved crash caused by undetectable UWP app.
  2. Resolved issue where global profile was always activated immediately following config save.
  3. Prevent profile from switching when linked app with focus temporarily stops responding.
  4. Prevent Control Panel from losing focus after manual check for updates.
  5. Added an auto backup system for profiles.
    1. Backup of last profiles successfully loaded will be saved to 'Documents/Swiftpoint X1 Settings'
    2. If your profiles are corrupted and the load fails, the backup will automatically be loaded instead.
    3. A copy of the corrupted profiles will also be saved to 'Documents/Swiftpoint X1 Settings' in case any profiles can be recovered manually.
  6. Improvements to the Control Panels logging system.
  7. Added ini settings that can disable admin app detection, and UI scaling in the (hopefully rare) cases they cause issues.
2.0.6.52 - Beta
  1. Prevent false positive app switches due to detected exe being sub-string of linked exe.
    1. e.g. "steam.exe" was switching to profile linked to "pathofexile_64steam.exe".
  2. Added fallback app detection system that's used if we don't have permission to read a detected apps name.
    1. It should no longer ever be necessary to launch Control Panel as Admin to detect apps.
  3. Enabled UI scaling based on Windows display settings.
    1. UI should now be legible even on small high-res displays if Windows scaling is used.
  4. Active profile displayed in UI is now correctly updated when profile is switched manually via mouse mapping.
  5. When multiple profiles are linked to one application, the most recently used of those linked profiles is once again correctly stored and restored when switching between apps.
    1. This is useful if for example you have separate "class" profiles for a single game which you switch between manually. As it means if you alt-tab out of the game the correct class profile will be loaded when you come back.
  6. Resolved issue where RGB drop-down in Simple Mode could appear in an incorrect location or not at all.
  7. If release input is not available (e.g. scroll/mouse movement), add release outputs to the press input when adding outputs in Simple Mode.
2.0.6.47 - Beta
  • Added Vibration options to deep click, mouse movement and tilt/pivot inputs in Simple Mode.


  • Restore previously active mode (Simple/Expert) on app launch.
  • Upgraded action library syntax to allow more complex actions (haven't added any yet, but can now).
  • Add labels for all nested inputs types in Simple Mode, and icons for mouse movement inputs.

  • Allow "Set Profile" and "Reset Angles" outputs on profile switch in Expert Mode.
  • Improved foreground app detection to support UWP apps.
  • Firmware update stability improvements.
  • Added support for previous firmware version on Swiftpoint Z's.
  • Resolved issue where overriding a mapping could sometimes clear other mappings on profile.
  • Resolved issue where new mappings added in simple mode could seem to disappear.
  • Resolved issue where a profiles mappings could appear to be duplicated after importing profiles.
  • Added check for invalid app links created by selecting shortcuts generated by Steam.
  • Save option now enabled when changing block further outputs flag.
  • Initial support for UI themes based on connected mouse in Simple Mode.

2.0.6.0 - Public
  • Allowed unlimited nesting of Deep Clicks in Expert Mode.
  • Corrected UI issue with nesting Tilt/Pivot inputs.
  • Resolved issue where apps with admin privileges could cause active profiles to be changed unnecessarily. (Apps run as admin can still only be fully detected if Control Panel is also run as admin).
  • Enabled partial translations of Expert Mode inherited from Swiftpoint Driver (Simplified Chinese, Japanese, and Spanish).
  • Disabled auto-save on app exit which was potentially causing config corruption.

2.0.5.12 - Beta
  • Enabled firmware updates to be resumed after a failed attempt.
  • Disabled firmware update option after firmware update completes to prevent unnecessary re-flashes of firmware.
  • Resolved issue with "Scroll Down" and some other outputs not initializing correctly and causing crashes.
  • Don't ask to close Swiftpoint Driver on Software update (only firmware update).
  • Hide various unusable output actions based on connected mouse.
  • Corrected issue with app signature.

2.0.5.0 - Public
  • Added profile for Cyberpunk 2077, and updated its action library.
  • Added profile and action library for VALORANT.
  • Updated Destiny 2 profile.
  • Disabled tilt calibration and auto zeroing options when Tracer connected.
  • Fixed crash that could occur when Tracer disconnected in Expert Mode

2.0.4.31 - Beta
  • Tracer can now access Expert Mode. Options not relevant to Tracer should be hidden/disabled.
  • Added Profiles and Action Libraries for:
    • Team Fortress 2
    • Destiny 2
    • Cyberpunk 2077 (Blank profile currently, I need to play it to come up with a profile)
  • Fix bug which prevented changing of default profile in Expert Mode.
  • [MacOS] Remove black fill in menu bar icon to match macOS style.
  • Blocked scroll-wheel on expert mode dpi sliders, combo boxes, and vibration outputs.
  • Back-end changes to app style (shouldn't have any visible effect yet, so if something doesn't look right let us know.)
  • Fixed issue where Z wasn't immediately detected if swapping from Tracer to Z.

2.0.4.11 - Beta
  • Added confirmation dialogue when profiles are removed via "Manage Profiles".
  • Release channel can now be switched via 'middle click' on Tracer logo in simple mode.
  • Added Control Panel version details to "Info" button on sidebar.
  • Revised firmware update dialogues to address old 'Swiftpoint Driver' app only if it is running.
  • Resolved issue where Global profile can be wiped when importing profiles.
  • Possible fix for mouse sometimes being temporarily disabled when X1 Control Panel is closed, or mouse is disconnected via expert mode.
  • Other minor UI tweaks and fixes.

2.0.4.0 - Public
  • Added UI to manage which predefined profiles are loaded.
  • Added hints area which displays dynamic hints based on current screen and cursor position. They can be enabled/disabled via 'info' button.
  • Allow naming of custom outputs in Simple mode. Click directly on the outputs current name to rename it.
  • Improved design for active profile menu and auto profile switching toggle.
  • Improved system that automatically links apps to predefined profiles.
  • Added MacOS specific shortcuts to basic action library.
  • Updated default MacOS desktop profile.
  • Added scroll-wheel support to profiles panel in both simple and expert mode.
  • Switched to OS specific dialogs for profile import/export, and locked exports to spcf file-type.
  • Updated intro prompt and info button URLs for User Guides and Changelog.
  • Prompt to calibrate tilt angles no longer displayed with Tracer connected.
  • Starter mappings prompt removed.
  • Rainbow Six: Siege profile now also links to it's Vulkan exe.
  • Corrected Dota 2 profile link on macOS.
  • Resolved bug which occurred when profiles were added in simple mode when sub-profiles exist.
  • Resolved bug which could lockout DPI settings on a profile.
  • Other minor UI tweaks and fixes.

2.0.3.0 - Public
  • Signed and notarized release of previous version.

2.0.1.36 - Beta
  • Resolved an issue with duplicate mappings being created when deep click is added.
  • Resolved an issue with recorded keystrokes being set to the incorrect key.
  • Improved detection of exe's for supported games.
  • [macOS] Disabled recording of caps lock key on macOS, as it caused a variety of issues. It can still be added as an output via general action library.
  • [macOS] Partial fix for 'Input Monitoring' permissions being required after each update.
  • Resolved an issue where it was possible to import a blank global profile.

2.0.1.18 - Beta
  • Replaced Tracer Image with Z mouse when Z is connected.
  • Added Save Mappings to Permanent Flash Mouse Memory on Simple View.
  • Improved synchronization between Simple and Expert modes.
  • Added Firmware update for Simple mode.
  • Added confirmation of deleting profile.
  • Fixed the issue: Release outputs should be in reverse order for shortcuts.
  • Fixed issue with opening sub windows behind the main application window.
  • Fixed the issue with renaming downloaded bundle during check for updates.
  • Fixed the issue with firmware conflict while trying to update mouse firmware.
  • Fixed the issue of action names with empty outputs from action libraries for supported games erasing after transition to expert mode and back.
  • Fixed the issue of "Keyboard&Media" saving in Expert Mode.
  • Fixed the crash after switching to Expert Mode.
  • Fixed the issue of upgrade message appearing even after the application is updated.
